SPE “Econika” is the oldest enterprise working in the field of medical application of ozone in Ukraine.
Medical application of ozone in Ukraine.
The enterprise”Econika” carries out intensive scientific research and manufactures a wide range of equipment for ozonisation medicine.
We invite specialists: doctors and dealers from Asia, Europe, Africa and America for teamwork.

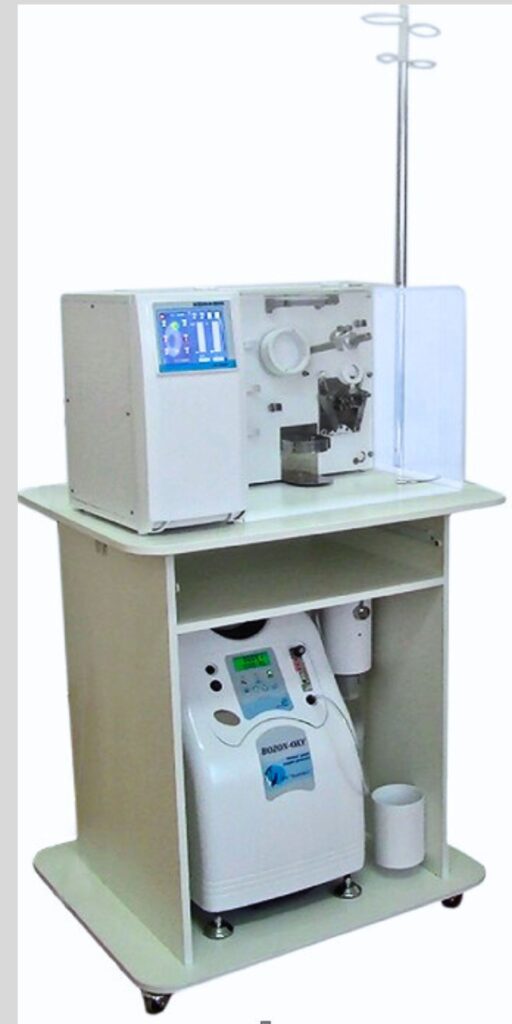

Ozone therapeutic device

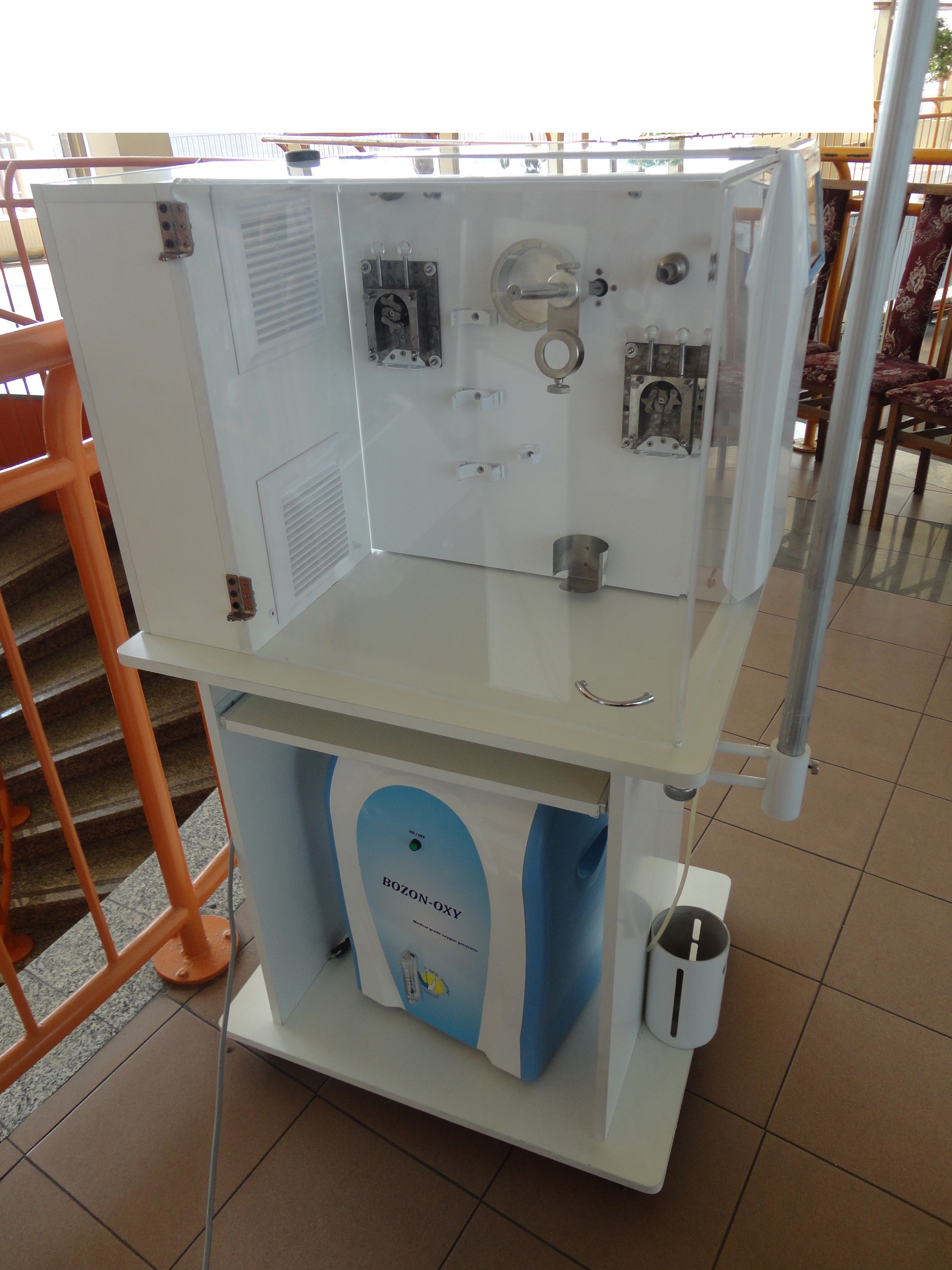

"Bozon-EBOO-RU"
- Generating OCS for a given time with a gas concentration in the range from 0.1 to 100 mg/l, with a given flow rate in the range from 0.2 to 1 l/min;
- Carrying out the procedure for extracorporeal blood treatment with ozone of large volumes in a special rotary-film contactor. Contactor rotation speed in the range from 35 to 45 rpm;
- Conducting plasmapheresis with oxygenation in a standard hemofilter and subsequent ozonation using ODF.
The required values for ozone concentration in the gas, gas flow rate, blood collection and return, volume of blood processed and amount of heparin administered are entered using the touch screen.
The rate of blood collection and return is 5-100 ml/min, the procedure lasts 100-150 minutes.
During the procedure, 3-6 liters of blood are processed.
During the extracorporeal blood treatment procedure, large volumes of ozone are introduced:
- control over the amount of processed blood;
- monitoring the presence of blood in the intake and return lines;
- stabilization of the temperature in the thermostat at 37.5 0С with a deviation of no more than ± 0.5 0С
The clinical experience accumulated to date confirms the great therapeutic potential of large-volume extracorporeal ozone therapy in patients with severe peripheral arterial disease and coronary heart disease, cholesterol embolism, severe dyslipidemia, Madelung disease, sensorineural hearing loss, necrotizing fasciitis, infectious diseases resistant to antibiotics, Lyme disease, viral hepatitis.

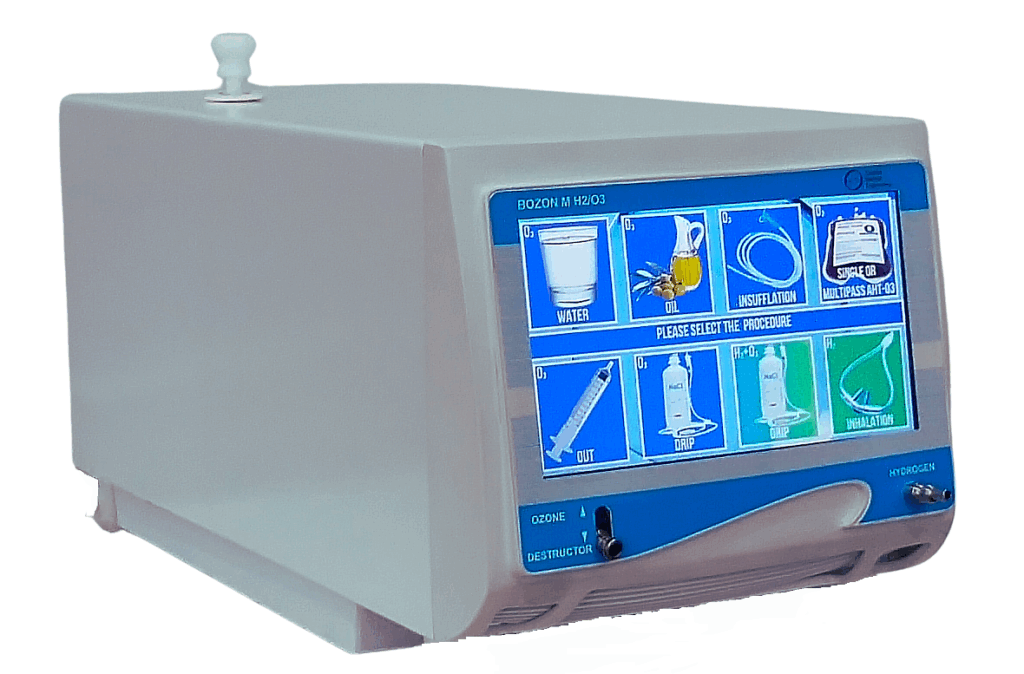

Bozon-M UNIC ozone therapy device
The device is designed to prevent a wide range of diseases by performing ozone therapy and hydrogen therapy procedures. The device is a source of ozone-oxygen mixture (OOM) for rectal, vaginal and auricular ozone insufflation procedures, preparation of ozonated drinking water and ozonated vegetable oils. The device also allows for hydrogen inhalation and the preparation of hydrogen-saturated water for drinking. It can saturate a saline solution with an ozone-hydrogen mixture and perform autohemotherapy procedures.
TECHNICAL SPECIFICATIONS OF THE DEVICE
Hydrogen flow rate 300 ml/min
Ozone-oxygen mixture flow rate 120-150 ml/min
Hydrogen concentration in air-hydrogen mixture
Ozone concentration range 1.4-1.6
5-60 mg/l
Electrical conductivity of distilled water used in the device 0-2 μS/cm

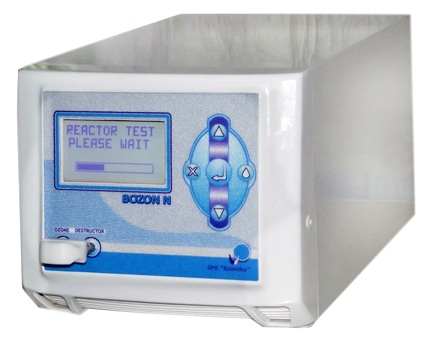

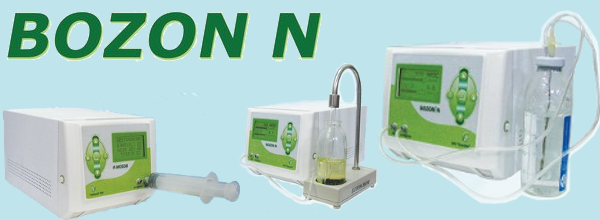

Ozone therapeutic device "Bozon-N"
The instrument is fully processed and has a channel with two measurements of ozone content in gas mixtures and in marine environment – distilled water and ozone-oxygen gas mixture.
The software of the device allows the following procedures to be performed automatically:
1) fill the formulation from 5 to 100 ml of ozone-oxygen mixture with a concentration of -0.5-100 µg/ml,
2) reduce the flow of ozone-oxygen mixture with flow rate from 0.2 to 1000 ml/min and concentration from 0.5 to 100 µg/ml in continuous mode.
Ozone therapeutic device "Bozon
-
N+"
The instrument is fully processed and has a channel with two measurements of ozone content in gas mixtures and aqueous media – distilled water and ozone-oxygen gas mixture. The instrument software allows the following procedures to be performed automatically:
1) fill the formula with 5 to 100 ml of ozone-oxygen mixture with a concentration of -0.5-100 µg/ml,
2) reduce flow of ozone-oxygen mixture with flow rate from 0.2 to 1000 ml/min and concentration from 0.5 to 100 µg/ml in continuous mode,
3) prepare ozonated water with a given ozone concentration ranging from 1 to 30 µg/ml,
4) prepare ozonated supplementary solution with a given ozone concentration ranging from 0.1 to 5 µg/ml,
5) to ozonate the oil to the specified peroxide number in the range from 50 to 2400 units. If Wi-Fi is available at the place of operation of the device, the device is under the internet control of the manufacturer at all times.
Ozone therapeutic device "Bozon-N++"
Generator of ozone-oxygen mixtures (OXO) with built-in OXO flow meter and ozone charge meter in OXO. The device is equipped with ozone charge meter in water.
Productivity of the device is 6 g/hour. Output ozone concentration – from 0.1 to 120 mg/l. It consists of three modules for ozonation of saline solution and a module for preparation of ozonated distillate; a device for ozonation of oils and a set of ozone-oxygen mixture in a syringe for low-zone autohemotherapy; a disposable plastic bag for carrying out percutaneous applications; a set for rectal insufflation.
The generator is equipped with a colour LCD display and is controlled by remote control.

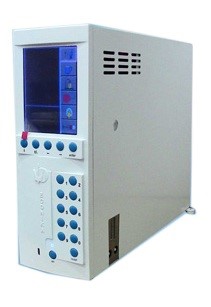

Ozone therapeutic device "Bozon-N+color"
Ozone-oxygen mixture (OOM) generator with connected OOM flow meter and OOM ozone charge meter.
The device is equipped with a water ozone content meter. The device’s capacity is 6 g/hour. The ozone concentration at the outlet is from 0.1 to 120 mg/l. The set includes: three modules for ozonating additional solution and a module for preparing ozonated distillate; a device for ozonating oils and a kit for preparing an ozone-oxygen mixture in a syringe for low-zone autohemotherapy; a disposable plastic bag for transcutaneous applications; a kit for rectal insufflation.
The generator is equipped with a colour LCD display and is controlled by a remote control.

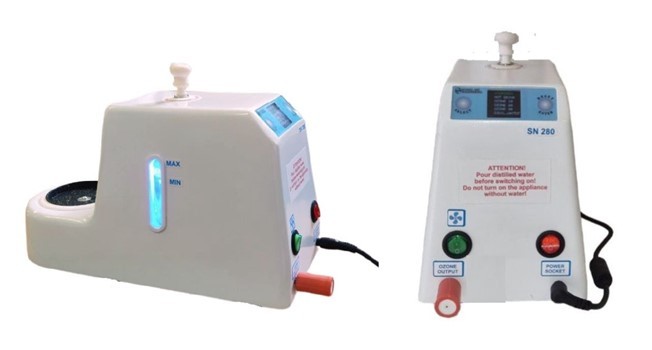

"Bozon Home H2/O3"
The generator consists of an ozone-hydrogen source and a heated hydrogen stand (hereinafter referred to as the “Platform”) for beverage containers. There is a hydrogen outlet in the centre of the “platform”. The device is controlled using buttons, and a colour screen displays the current status of the device.
The device is a source of ozone-oxygen mixture (OOM) for rectal, vaginal and ear ozone insufflation procedures, saturation of physiological solution with ozone and ozone-hydrogen mixture, preparation of ozonated water and ozonated oils. The device also allows for hydrogen inhalation and the preparation of hydrogen-saturated drinking water and hydrogen-saturated beverages, including hot and alcoholic beverages.
TECHNICAL SPECIFICATIONS OF THE DEVICE
Hydrogen flow rate: 100–120 ml/min
Ozone-oxygen mixture flow rate: 50–60 ml/min
Hydrogen concentration in the air-hydrogen mixture for inhalation 1.4-1.6%
Maximum ozone concentration 80 mg/l
Heating platform temperature for hydrogen-saturated hot drinks Not less than 60°C
Electrical conductivity of distilled water used in the device 0-2 mS/cm
Distilled water consumption in “Inhalation” mode 6 ml/hour

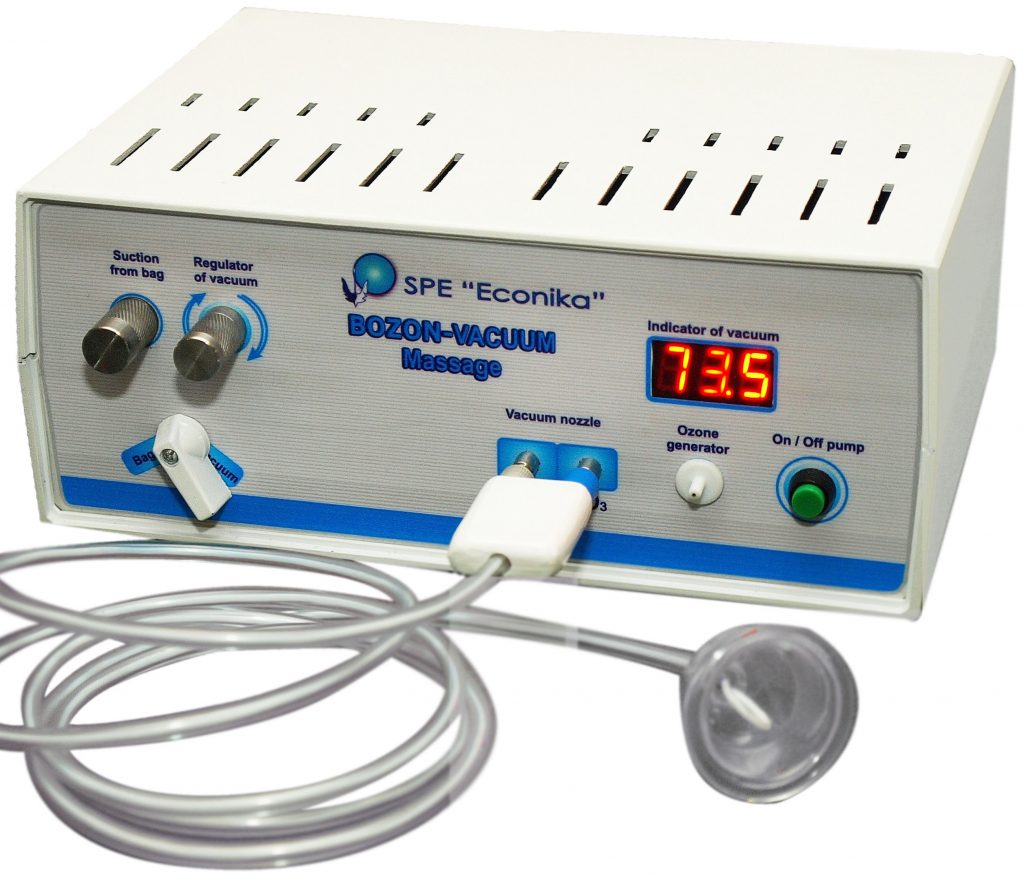

Module "Bozon VACUUM Massage”
The module is designed for vacuum massage with ozone. A set of four special glass nozzles allows you to treat problem areas of any size. The infinitely variable vacuum setting can be adjusted individually depending on the patient’s sensitivity threshold.
An additional function of the module is the mode of ozone suction with a bag for external application of ozone.

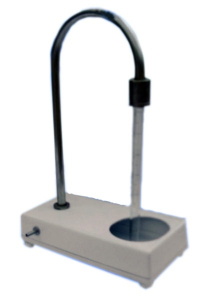

Module "Bozon MOO”
Used for preparation of ozonised oil in the MOO module.

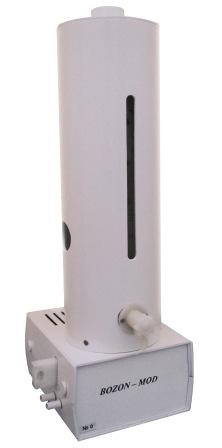

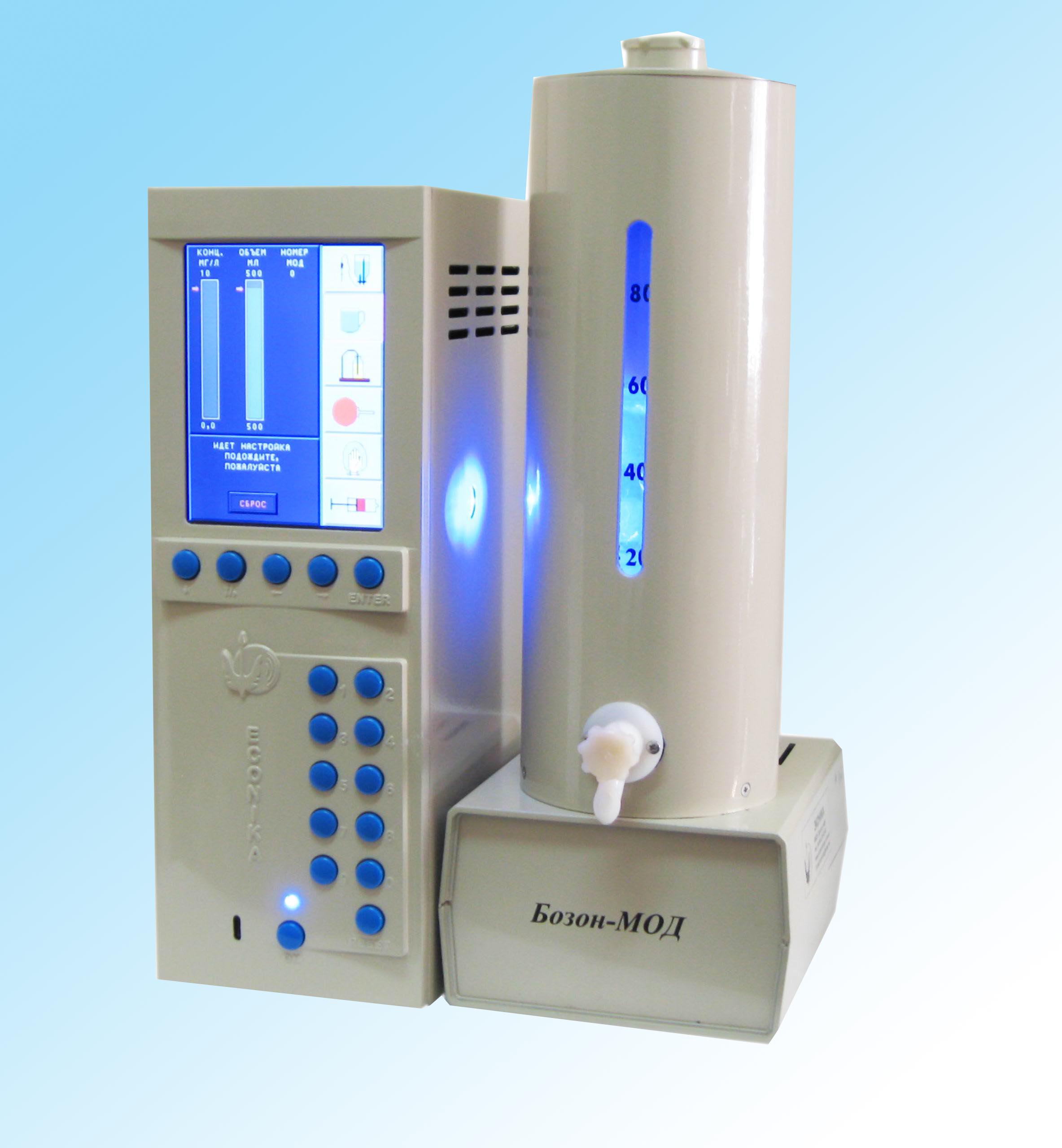

Module "Bozon MOD”
Set:
The device is designed for preparation of ozonated distilled water with distributed concentration.
Module "Bozon-LOR"
Set:
Module “BOZON-LOR” is a device for ozone therapy of otitis media, maxillary sinusitis by intra-ear application of ozone with the help of catalytic deosonator. To perform intra-ear application of ozone-oxygen mixture of high content (10-100 mg/l) without contamination of room air with ozone.
Module "Bozon-INGA”
Complete set:
The module “BOZON-INGA” is designed for inhalation of ultrasonic ozonide hydrosol.

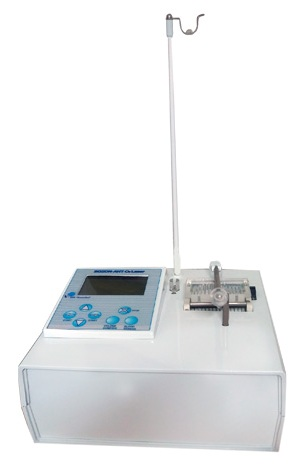

Module "Bozon-BAGTO-LAZER"
Equipment: Module “BOZON-BAGTO-LASER” is an automated device for large autohemotherapy. It is equipped with a reversible peristaltic pump with cam drive and microprocessor control system.
The use of module “BOZON-BAGTO-LASER” significantly (up to four times) reduces the time of procedures. The traumatic nature of the BAT procedure is sharply reduced when using a 0.7 mm diameter needle for blood sampling.
The device has a built-in flow rate regulator, timer and safety system, which provides the possibility of air breakthrough into the vein during reinfusion of ozonated blood. Protected by patents of Ukraine.
Module "Bozon-INGA”
Package:

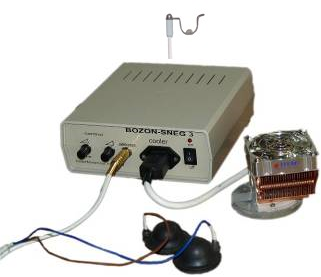

The module “BOZON-SNEG-3” is designed to enhance saline effect and control pain reactions in patients during subcutaneous injections of OCS by combined effect of cold analgesia and microcurrents. During the tests the possibility of sharp increase of ozone concentration during subcutaneous injections without increasing pain sensations from injection was shown. Protected by patents of Ukraine.

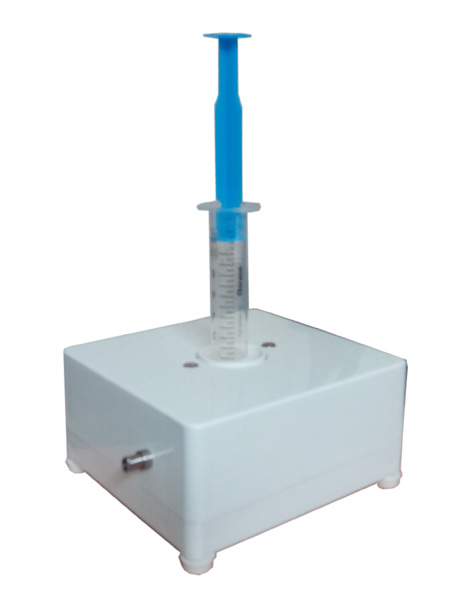

Module "Bozon-PORT"
Package:
The Bozon-PORT module is equipped with a valve made of ozone-resistant material, which allows to quickly fill the syringe with OXA, which greatly simplifies subcutaneous injections of OXA. Stability of OXS concentration is achieved by constant purging of the module, excess OXS is delivered to the destructor.

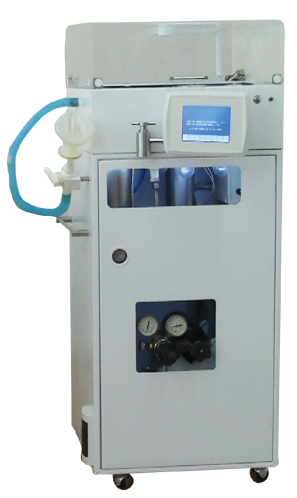

Automatic installation “BOZON N NOBLE” for inhalations with noble gases
The device is designed for inhalation of one of four gas mixtures:
He – N – O2 mixture – oxygen > 25%, helium 20-60%, the rest nitrogen;
Ar – N – O2 mixture – oxygen > 25%, argon 10-60%, the rest nitrogen;
Cr – N – O2 mixture – oxygen > 25%, krypton 5-60%, the rest nitrogen;
Xe – N – O2 mixture – oxygen > 25%, xenon 5-30%, the rest nitrogen.
Switching from one type of breathing mixture to another is done by changing the gas cylinder. The type and composition of the gas mixture are set in the initial dialogue and maintained throughout the procedure.
Inhalations are carried out according to the scheme of a closed breathing circuit. The concentration of oxygen and inert gases is at least 25% of the preset level. Preheating of helium-oxygen mixture in the range of 40-90 °C is possible.

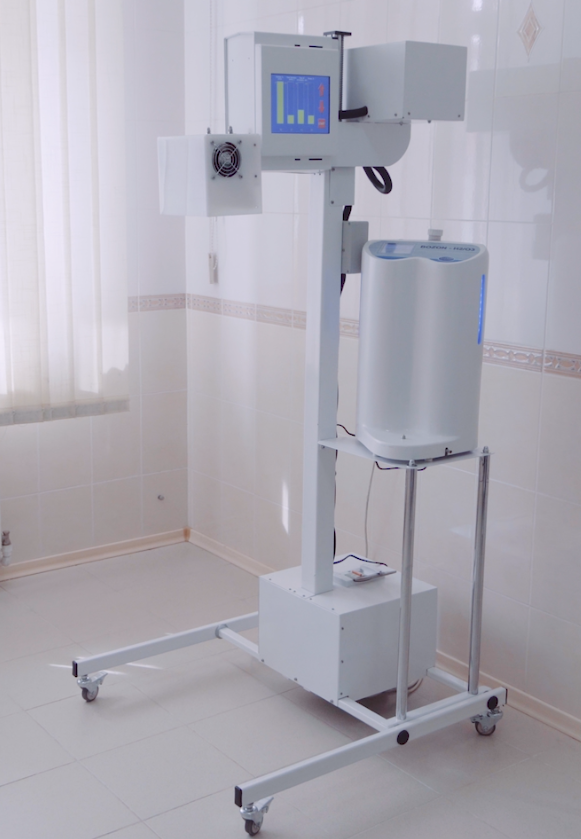

The medical complex "Bozon – DTMS-H2-O3"
A revolutionary method of treatment with medical gases – ozone (in the form of intravenous administration of ozonated physiological solution) against the background of hydrogen inhalation and deep transcranial magnetic stimulation of the limbic system of the brain.
Medical complex “Bozon – DTMS-H2-O3” provides autonomous (without cylinders with liquefied gas) generation of O2/O3 mixture with strictly controlled parameters of ozone and hydrogen gas for inhalation with a flow rate of 200 ml/min.
The “Bozon – DTMS-H2-O3” complex is controlled by a touch screen.
The complex “Bozon-DTMS-H2-O3” also provides deep magnetic stimulation of the brain with strictly defined parameters.
For full information download -> PriceList
